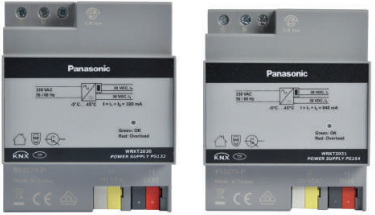

KNX POWER SUPPLY PS132 - 320mA / PS164 - 640mA

Reliable and safe power connection with line over voltage protection for the AC mains input.
Ultimate reliability with built-in Overload and Short Circuit Protection on the outputs.
Compact DIN4 Size, which redefines space efficiency with 4 modules at only 18 mm, offers powerful protection without compromising form.
Stay informed at a glance with LED Indication, seamlessly signaling the status, whether it’s a smooth operation or an alert for overload.
Enjoy versatility with an Additional Unchoked Auxiliary Output, providing an extra layer of connectivity for your diverse needs.
Trust in quality with VDE-Certified assurance, ensuring our product meets the highest standards for safety and performance.

Specification	Details
Mains Voltage	230 VAC @ 50/60Hz
Leakage Loss (Open Circuit)	0.85W
Leakage Loss (Normal)	320mA: 3.5W 640mA: 4.9W
Power Consumption (Normal)	320mA: 13.9W 640mA: 25.6W
Power Consumption (Max. Overload)	320mA: 20.4W @ 500mA 640mA: 35.3W @ 900mA

Specification	Details
Dimensions (H × W × D)	90 × 71.8 × 65.8 mm
Mounting	35 mm Top-Hat Rail (TH35) according to IEC 60715
Width in Space Units	4 modules (18 mm each)
AC Supply Input Connection	Single wire: 1.5–4 mm² or 2 × 1.5 mm² to 2 × 2.5 mm² Stranded wire (without ferrule): 0.75–4 mm² Stranded wire (with ferrule): 0.5–2.5 mm² Maximum tightening torque: 0.6 Nm
KNX Bus Connection	KNX TP Connector (Red/Black)
AUX Output Connection	KNX TP Connector (White/Yellow)
Weight	217.3 g

Specification	Details
BUS Output Voltage	28–31 V DC (SELV)
30 VDC Output Voltage	28–31 V DC (SELV)
Rated Current (BUS + 30 VDC)	320 mA / 640 mA
Mains Failure Bridging Time	100 ms
Short Circuit Current (BUS + 30 VDC)	320 mA Version: 700 mA 640 mA Version: 1300 mA

Specification	Details
CE Marking	Compliant with EU Directives (EMC & LVD)

Product	Model	Product Code
KNX Power Supply - 320mA	PS132	WRKT20305NC
KNX Power Supply - 640mA	PS164	WRKT20315NC
