| Model | DC voltage | Rated current | Current range | DC output power | Ripple & Noise (max) | load regulation | linear adjustment rate | Efficiency (Typ.) |
|---|---|---|---|---|---|---|---|---|

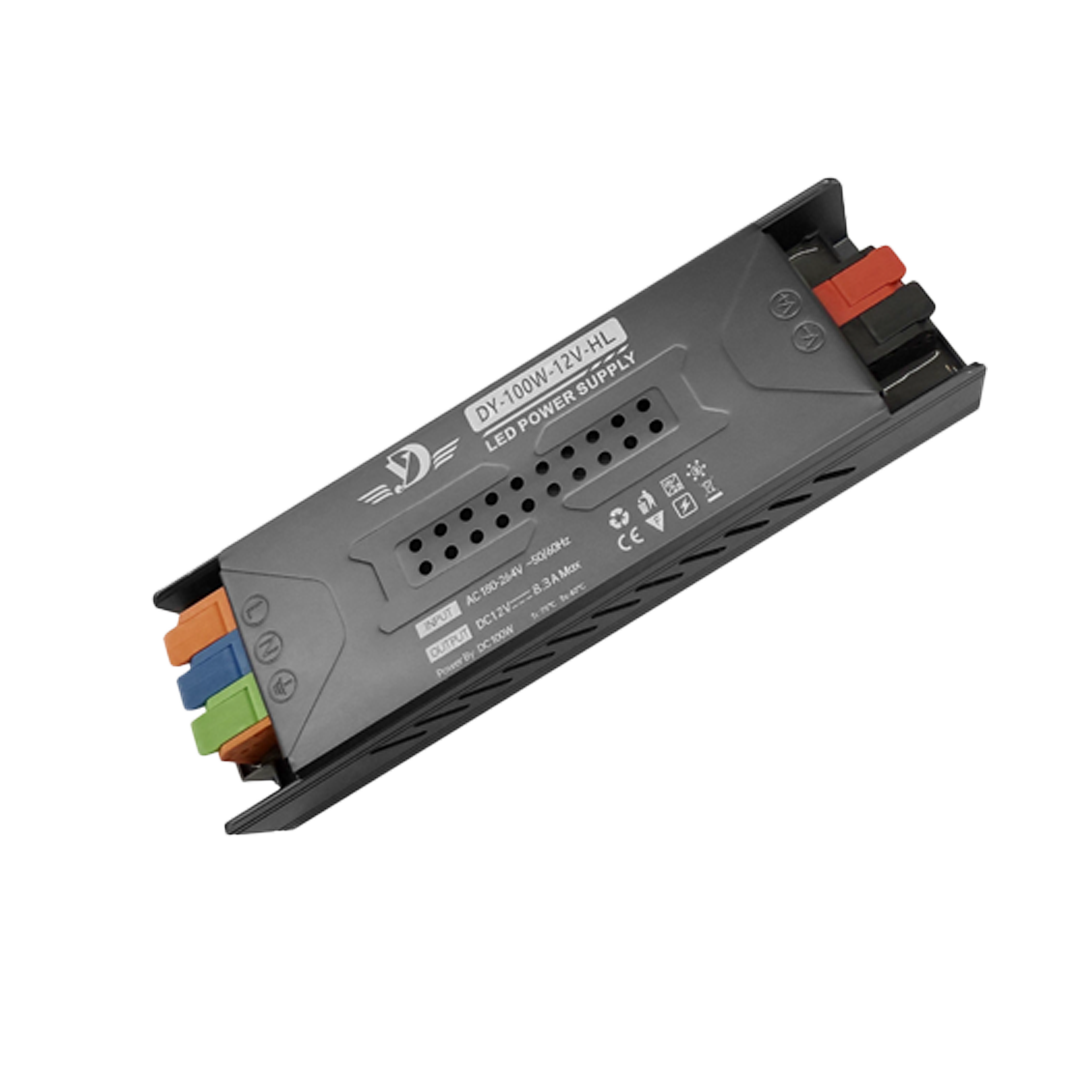

| DY-100W-12-HL7 | 12V±5% | 8.3A | 0-8.3A | 100W | <250mV | 1% | 1% | >88.1% |
| DY-100W-24-HL7 | 24V±5% | 4.2A | 0-4.2A | 100W | <250mV | 1% | 1% | >90.1% |
| Model | Voltage range | Frequency range | AC current(Typ.) | Cold cranking current | Power factor(Typ.) |
|---|---|---|---|---|---|
| DY-100W-12-HL7 | 180-250V AC | 50-60Hz | 0 . 5 A 230V | 17A/230VAC | PF<0.6 |
| DY-100W-24-HL7 | 180-250V AC | 50-60Hz | 0 . 5 A 230V | 17A/230VAC | PF<0.6 |
| Model | Pressure resistance | Insulation resistance |
|---|---|---|
| DY-100W-12-HL7 | Between input and output: AC2.5KV 5mA 60S; | Between input and output: 100Mohms/500VDC/25℃h |
| Between input and shell: AC2KV 5mA60S |
