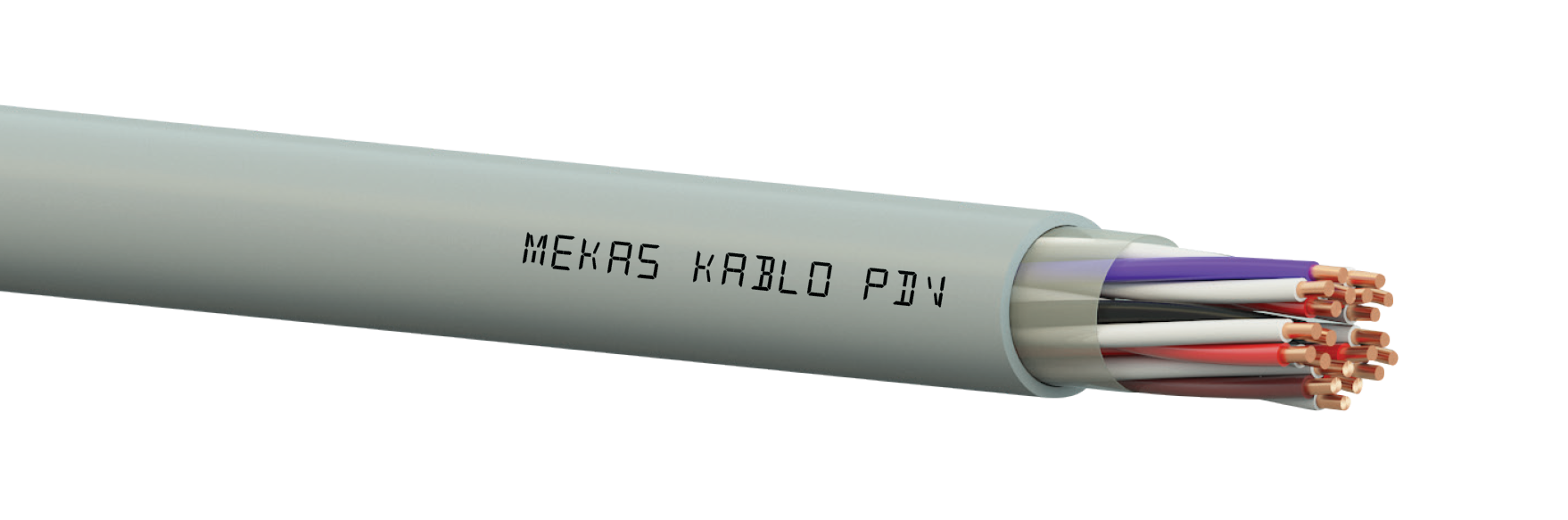

PDV
APPLICATIONS
These cables are used as telephone cables inside the buildings for signal transmission and subscriber distribution purposes.
CABLE CONSTRUCTION
| Conductor | 0,50 mm CU Wire / 0,50 mm Tinned Cupper |
| Insulation | PE |
| Lay-Up | Up to 10 pairs laid up as star-quads. After 10 pairs, 5 star quads laid up to a group. And 5 or 10 groups laid up to a unit; each group is wrapped by polypropylene identification tape |
| Out Sheath | PVC - HFFR |
| Colour of Sheath |
Grey |
| Sheath | LSZH |
STANDARTS
YANGIN PERFORMANSLARI (FIRE PERFORMANCE):
