APPLICATIONS
These cables are used in low attenuation requied
systems such as indoor CATV CCT distribution and SATV satallite systems as connection cable.

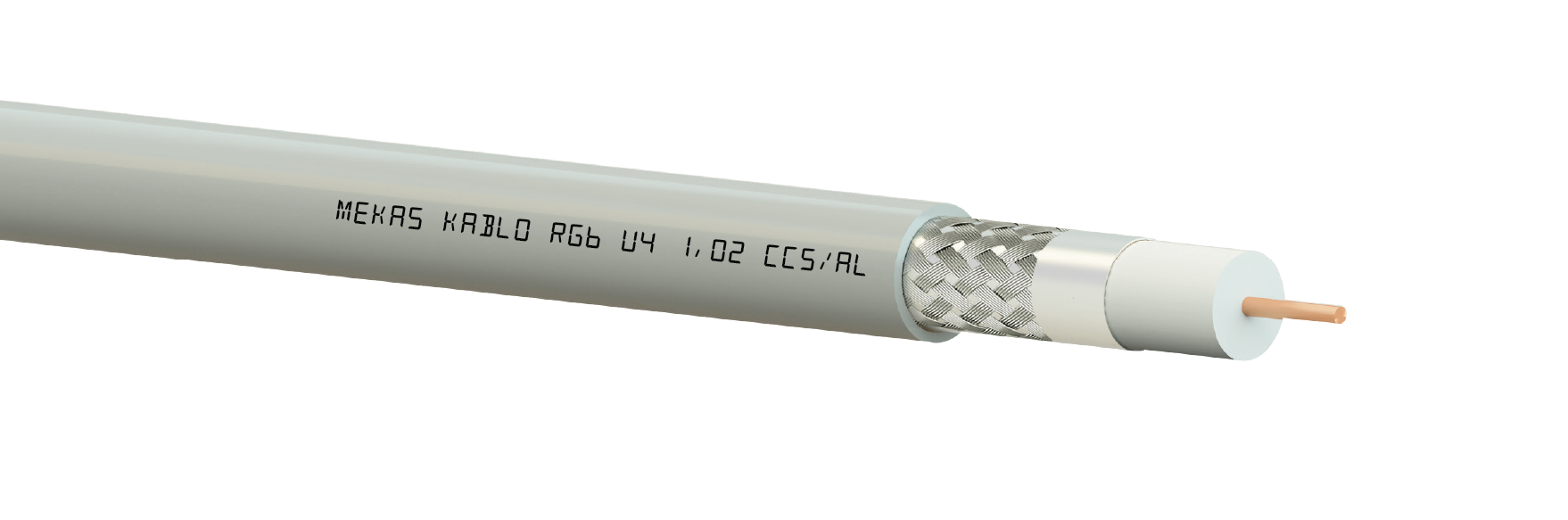

CABLE CONSTRUCTION
| Conductor | 1,02 mm CCS %15 Cu |
| Insulation | 4,60 mmØ Physical Foam PE |
| Packing | 100 – 300 - 500 mt |
| screen | 128 x 0,12 Al Braid + Al Foil |
| Outer Sheath | PVC: Gray |
| Product Types | RG6 U4 CCS/AL |
ATTENUATION 20C° MAX
| 5 MHz | 6.40 dB/100 m |
| 200 MHz | 13.60 dB/100 m |
| 400 MHz | 15.70 dB/100 m |
| 800 MHz | 20.40 dB/100 m |
| 1000 MHz | 22.86 dB/100 m |
| 2150 MHz | 35.30 dB/100 m |
| 2400 MHz | 36.70 dB/100 m |
| 3000 MHz | 42.75 dB/100 m |
